FlexiElectric – Wall mounted frame

Item no.: 30-66255 to 30-66300

30-66255 to 30-66300
  • Features

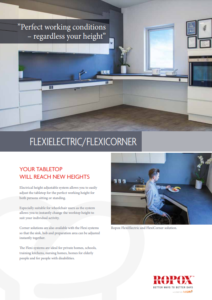

  • Brochures & Manuals
  • Drawings
  • Cases
  • Data

Electric height adjsutable frame for worktop.
Worktop length: 255-300 cm.
Height adjustment 30 cm.
For worktop depth 58-62 cm.
Numbers of legs 3 and support arms 7.
Various adjustment brackets, spacers for walls, cable bearer etc. are included.
Standrad colour is white RAL 9010.
Number of legs and support arms depends on the size of worktop.

Technical specifications

Design Modular design can be retrofitted
Type og mounting Wall mounting
Frame height 65 cm
Lifting height 30 cm
Frame depth 8 cm (Leg)
Facia height 5 cm (Support arms)
For worktop length 60 – 300 cm
For worktop depth 39 – 73 cm
Max. Lifting capacity 150 kg
Lifting speed 32mm / sec, approx.
Power supply 230VAC / 2,5A / 50 HZ
Operating Voltage 24VDC
Material Welded steel tubes
Surface Powder coated
Color White, RAL 9010
CE Certified

The convenient solution for height-adjustable worktops that often must be adjusted to changing ergonomic requirements. The motor-driven fitting raises the worktop with cooking, rinsing or preparation surfaces stepless to the required height.

It is used in wheelchair-accessible private households, therapy, and school kitchens, as well as in shared kitchens. The height is adjusted quickly and quietly with a lifting speed of approx. 3 cm / second.

Absolutely safe operation with the sophisticated anti-collision and underride protection system:

If the system accidentally hits the legs of a seated operator, the system will stop and automatically move back up 2 cm.

FlexiElectric can be equipped with all standard kitchen furniture parts.

As an alternative to the supplied control button, the height can also be adjusted by remote control. Extra-large control buttons are also available.

  • Enables minimized worktop construction.
  • Economical use in objects through assembly on site
  • When moving house, the systems can be adapted to the new dimensional requirements as required.
  • Easy assembly without special tools and horizontally relatively independent of the installations
