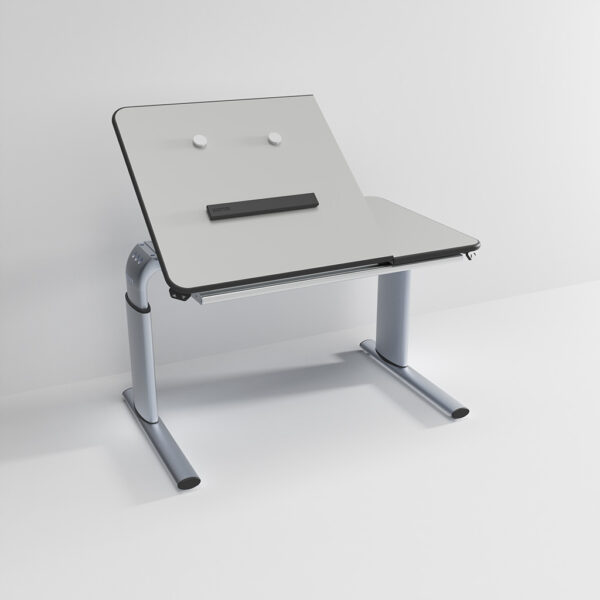

Vision Table – Manual/Electric Adjustable Desks

Wheelchair desks with tiltable tabletop ( 0-71 °). Available in two lengths, with manual or electric 30 cm height adjustment.

Item no.:

Vision Table – Manual/Electric Adjustable Desks

Wheelchair desks with tiltable tabletop ( 0-71 °). Available in two lengths, with manual or electric 30 cm height adjustment.

Item no.:

Power

Electric / Manual

Height adjustment

30 cm (60-90 cm)

Tiltable tabletop

0-71 °

Operation

Handle / Control switch

Sizes

90x60 cm and 120x60 cm

Integrated steel plate

Soft rounded edges

Description

Vision Table is a series of height adjustable desks with tiltable tabletop. These tables offers an array of tabletop sizes, models, adjustment options, and a range of features that will make your life easier: You can tilt the tabletop ( 0-71°) and shorten the distance to the documents on the tabletop. You can keep your documents in place with the MagRule magnet even when the tabletop is tilted.

The tabletop has a matte surface, therefore no annoying glare. You can adjust the height (60-90 cm) manually with a handle or through a light pressure on the control switch (electric), and you can use the arm supports to relieve your forearms, and as a help to a balanced sitting posture.

Specifications

Power

Electric or Manual

Højdejustering

30 cm (60-90 cm)

Tiltable tabletop

Table type A: Tabletop without tilt.

Table type B-G: Tabletop with 0-71 ° tilt

Feature

Integrated steel plate (Table type B-G)

Max. load on the table (static)

100 kg evenly distributed

Max. load during lifting (dynamic)

50 kg

Max. load on tilted tabletop (static)

30 kg (Table type B-G)

Max. Load during tilting the tabletop (dynamic)

4 kg

Power source (Electric model)

Hard-wired

Power supply (Electric model)

230VAC / 2,5A / 50Hz

Duty circle (Electric model)

Max. 10 % conform to 1 min. active / 9 min. Pause

Lifting time (Electric model)

Approx. 10 sec.

Materials

Frame: Aluminium leg. 606045-T6. Stål St. 37. Various plastic components
Tabletop: Laminate

Surface treatment

Anodiseret
Powder coating, various colours
Chromating

Standard colour

Light grey

CE certified

Mounting Instructions
Downloads

Datasheet (pdf)
