VertiInside – Electric Lift System for Cabinet Shelves

An electric height adjustable cabinet lifting system that lowers the cabinet-shelves down to the worktop.

Item no.:

VertiInside – Electric Lift System for Cabinet Shelves

An electric height adjustable cabinet lifting system that lowers the cabinet-shelves down to the worktop.

Item no.:

Feature

Shelves lowers down to the worktop

Power

Electric

Height adjustment

49.5 cm

Operation

Control switch

Max. user weight

80 kg, evenly distributed

Cabinet width

40-100 cm

Description

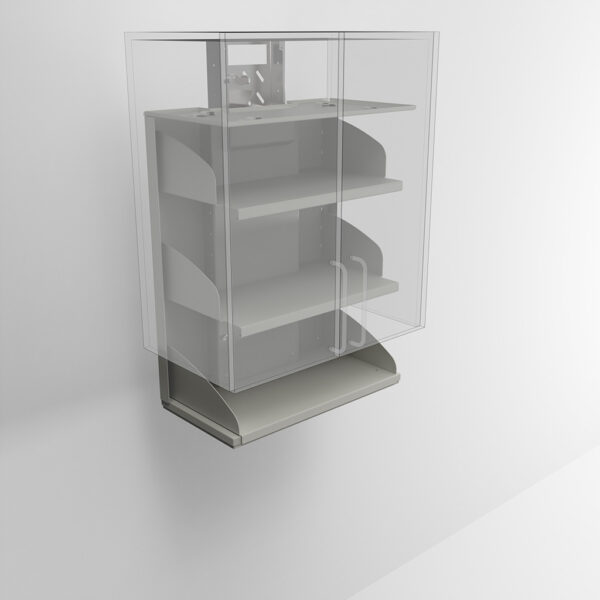

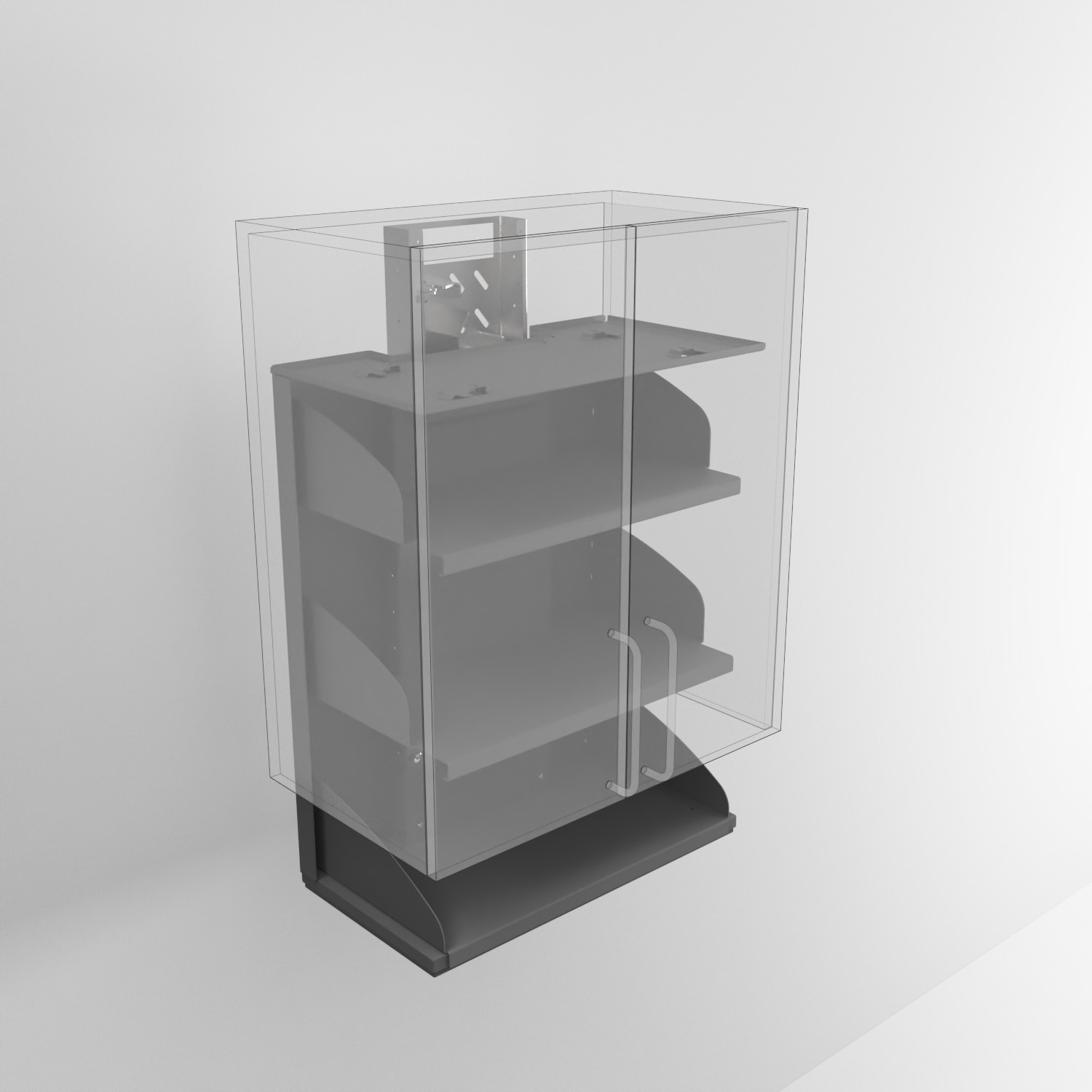

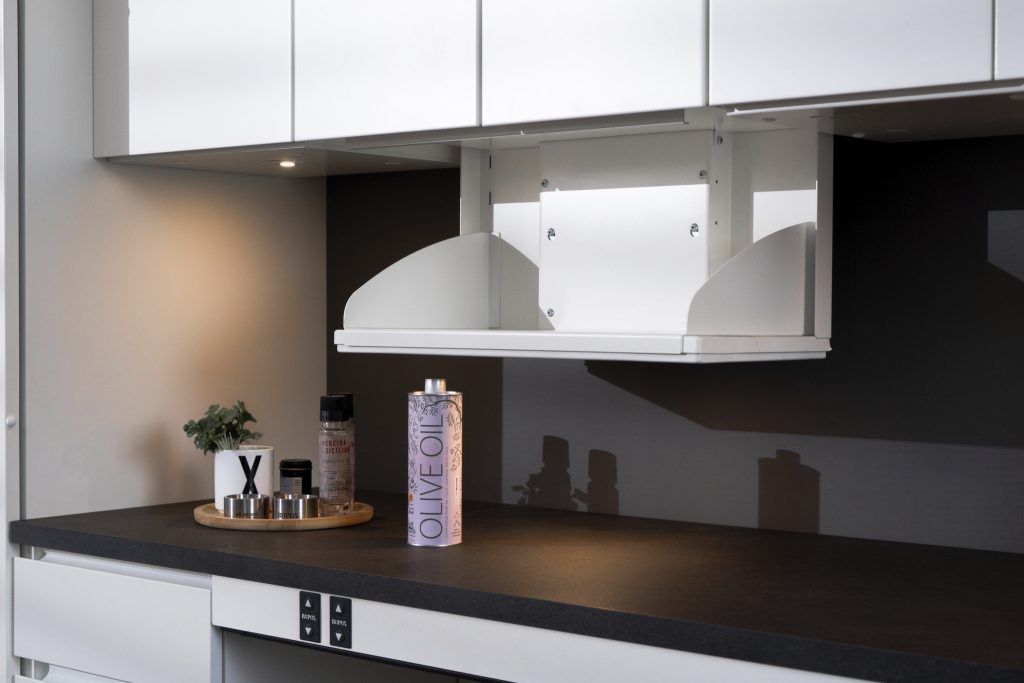

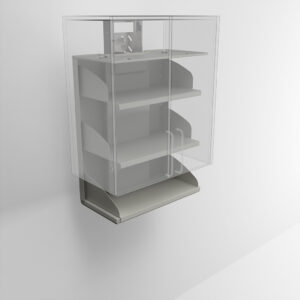

VertiInside is an electric lift system for height adjustable cabinet shelves (49.5 cm) that enable the user to easily reach items in the cabinets. The system is especially ideal for wheelchair users as you can reach the 2 lower shelves without having to open the cabinet doors first. The VertiInside upper cabinet system looks just like any other common kitchen cabinet system in general and you adjust the shelves by a control panel for example integrated in the fascia.

Smartbox for connecting the safety systems of several units – In principle, the collision protection devices of one or more VertiInside, Diagonal and Flexi(Electric) can be connected. Each system requires its own Smartbox.

Specifications

Height adjustment

49.5 cm

Dimensions

Height: 70.8 cm
Width: 40-100 cm
Depth: 26.5 / 31 cm

Operation

Control switch integrated into the worktop

Configuration

Only shelves lower and raise

Mounting

Wall-mounted

Max. user weight

80 kg evenly distributed

Power source

Hard wired

Power supply

220-230V~ / 50-60Hz, 5,0A

Lifting speed

Approx. 33 mm/sec. – Approx. 15 sec

Safety

Two safety stops integrated – one in the top and one in the bottom.

Materials

Welded steel pipes St. 37 and various plastic components

Surface treatment

Blue chromate, powder coating

CE certified

Mounting Instructions
