StandardLine Washbasin – Unit without washbasin

Item no. 40-14770
  • Features
  • Installation & maintenance
  • Drawings
  • Cases
  • Data

Features

Electric height adjustment 70-100 cm.
Operation may be placed to the left or the right hand side.
Dim. without washbasin 66x12x73 cm.
This model comes without mixer tap.

Data

Technical data

Manufactured in accordance with the following standard: DS/ISO 17966:2016
Electric components: IPX6 and DS/EN60601-1

Material:
Washbasin: Gelcoated composit/porcelain
Frame: Aluminum. Coated steel. Stainless steel.

According to DS/ISO 17966:2016 – max. user weight StandardLine:
Unit item no. 40-14770 = 200 kg
Standard washbasin item no. 40-14771 = 200 kg
Hospitals washbasin item no. 40-14773 = 200 kg
Support washbasin item no. 40-14772 = 200 kg

Function measurements:
Height adjustable 30 cm, 70-100cm

Wasbasins with a distance between the bolts 280-310 mm can be mounted on the StandardLine unit.

The washbasins are characterized by their reliability, durability, and user-friendliness. The unit design hides the plumbing and this gives the washbasin a discrete, elegant and modern look.

The Standard Washbasin unit can be combined with one of three washbasins:

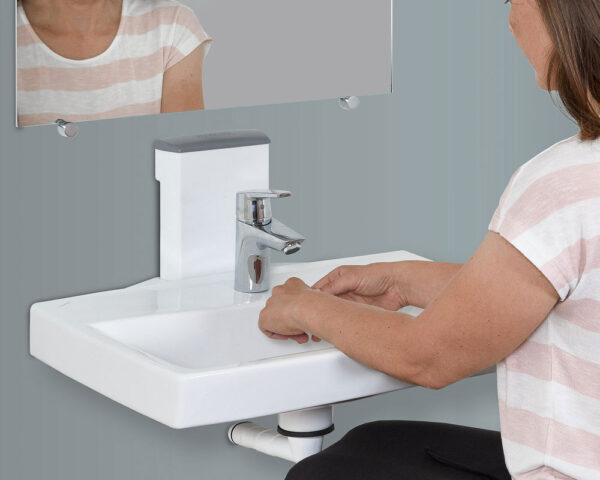

  • Standard washbasin with a simple and stylish design

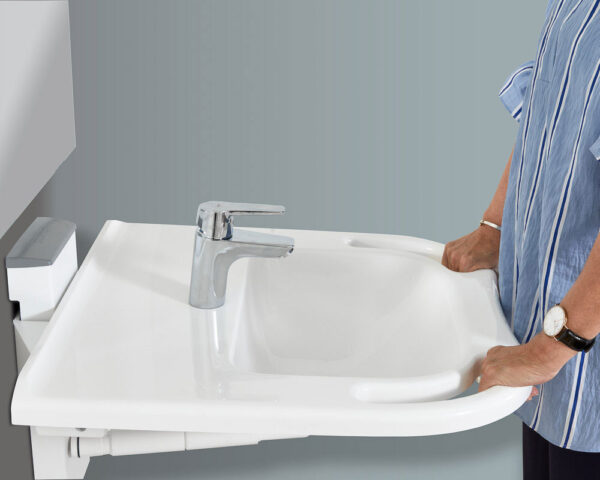

  • Support washbasin increases security and accessibility
  • Hospital washbasin in porcelain with curved front

Both users and carers find the Standard Washbasin to be a solution that meet their needs, and the washbasins are used in both private homes, care centers, nursing homes, and hospitals.
