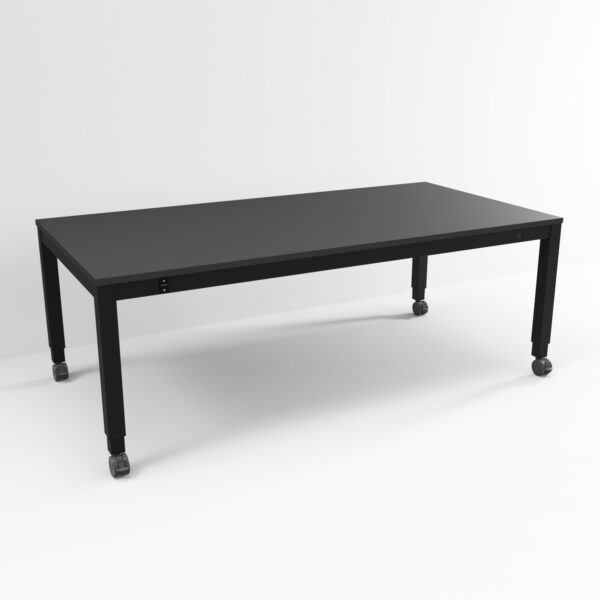

4Single Complete – Height Adjustable Dining Table

4Single is a height adjustable table with included tabletop. Available in different sizes and with electric or manual height adjustment (30 cm).

Item no.:

4Single Complete – Height Adjustable Dining Table

4Single is a height adjustable table with included tabletop. Available in different sizes and with electric or manual height adjustment (30 cm).

Item no.:

Power

Electric / Manual

Height adjustment

30 cm

Operation

Control switch / Handle

Max. user weight

150 kg evenly distributed

Size

165 x 100 cm / 200 x 100 cm

Description

4Single Complete is a height adjustable multi-function table (30 cm) suitable for sitting as well as standing work. It comes with an elegant grey laminate top with black edges and a stylish grey frame. It is available in two sizes, with manual or electrical height adjustment and two different height adjustment ranges. If required, it can also be made by measure according to your specifications.

You can adjust the frames by using a handle (manual model) or control switch (electric model). If you mount robust brake wheels on the frame you will get a very mobile table that can be placed almost anywhere in the room according to individual needs.

Specifications

Height adjustment

30 cm

Operation

Electric model: Control switch

Manual model: Handle

Tabletop dimensions

Height: 57.5 – 87.5 cm / 67.5 – 97.5 cm

Length: 100 cm

Width: 165 cm / 200 cm

Frame

The frame is 4 mm smaller than the worktop as standard. Frames are ordered according to the size of the worktop. If the overhang shall be larger – please contact Ropox.

Max. load of frame

150 kg evenly distributed

Power source (Electric model)

Hard-wired.
Battery solution can be purchased (Accessory)

Power supply (Electric model)

220-230V~ / 50-60Hz, 5,0A

Lifting speed

Approx. 32 mm/sec. – approx. 10sec.

Increased load of frame (Electric model)

Option for electric model:

250 kg – height adjustment 55-85 cm (Item no. 50-41320)
250 kg – height adjustment 65-95 cm (Item no. 50-41420)

Lifting speed for increased load of frame: Approx. 12 mm/sec. – approx. 25sec.

This is an accessory that can be purchased.

Safety (Electric model)

Safety strip can be purchased (Accessory)

Materials

Welded steel tubes St. 37 and various plastic components

Surface treatment

Blue chromate, powder coating: Standard CWS 81283 RAL
7021 mat

Standard color

Frame: dark grey structure – RAL7021
Tabletop: light grey with black edge. Laminate: NCS S 3502-R, RAL 7004

CE certified
