FlexiPlus – Electric Lift System

An electric height adjustable countertop lift with flexible placing of legs, few components and anti-collision.

Item no.: 30-90060 to 30-90100

FlexiPlus – Electric Lift System

An electric height adjustable countertop lift with flexible placing of legs, few components and anti-collision.

Item no.: 30-90060 to 30-90100

30 cm electric height adjustment

Control switch

Max. weight: 100 kg / 150 kg

Corner solutions

Description

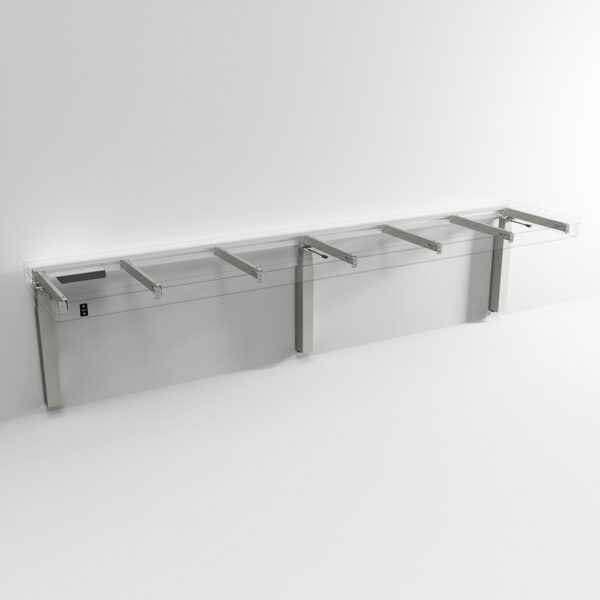

FlexiPlus is an electric countertop lift that comes with a 30 cm height adjustment range as standard. It is possible to programme the height adjustment to an even larger range, from 0-66 cm. FlexiPlus has quiet height adjustment, an elegant cover of mounting screws, a more flexible placing of legs and fewer components. Also, you can get a control device with a key lock or as a remote control.

The built-in ROPOX Sicuro anti-collision is an extra safety feature. If you choose to add the safety stop list on the front edge of the worktop, you can avoid trapping risk when operating the table. If the existing piping hinders the mounting of the table frame, you can install FlexiPlus with protruding legs using distance brackets.

Accessories

Item no: 30-67705

Supporting Foot for FlexiPlus

Extra stability for the FlexiPlus electric height-adjustable frame when wall support is limited. Available in 49 cm length and mounts under the frame legs.

Item no:

Support Arms

Support arms provide a strong base, distributing the load of the worktop. Should be chosen if the worktop depth differs from the standard 58-62 cm. Choose variant

Item no:

Extra Leg For FlexPlus

If an increase in lifting capacity by 50 kg is desired, the FlexiPlus requires 3 legs, which means an additional leg must be ordered. Choose variant

Item no:

Kitchen Sinks

Stainless steel sinks 40x34 cm including insulation plate under the sink. Available in 2 depths: 13.5 cm and 10 cm. Choose variant

Item no:

Safety Strip For FlexiPlus

Safety strip (2.2kOhm) for mounting under the front edge available in various lengths; we always recommend having a safety strip on 3 sides of the countertop. Connection cable included at 150 cm. Choose variant

Item no: 30-45010

Flexible Plumbing Kit

Flexible plumbing kit for kitchen sink. Includes connection hoses and a flexible drain hose. This item is compatible with Flexi countertop frames, FlexiPlus, and 4Single frame.

Item no: 30-67635

Plumbing Cover

Telescopic cover for water installations, white.

Item no: 30-90530

Distance Bracket FlexiPlus

The distance bracket extend the leg 7 cm out from the wall to enable optimal positioning of the frame in situations where wall-mounted installations or obstacles would otherwise interfere with the standard placement of the legs.

Item no: 30-67760

Brackets For Concealment Panels

Flexible brackets for mounting cover plates that cover the entire area under the Flexi frame. Cover plates are not supplied by Ropox.

Item no: 30-93700

Reprogramming Of Travel For FlexiPlus

If there are physical obstacles preventing the frame from completing its full travel, this unit can be ordered to limit its movement. Please note: only the top position can be adjusted.

Item no: 30-90580

Double Safety FlexiPlus

For the product FlexiPlus, when having two frames placed next to each other, it’s possible to increase their inherent safety by using the double safety, thereby reducing the risk of squeezing and entrapment.

Item no: 30-90540

Wireless Hand Control FlexiPlus

Wireless hand control for height adjustment of FlexiPlus countertop via Ropox App (IOS).

Item no: 30-90550

Lockable control switch

This control can be locked to prevent unintended use of the FlexiPlus height adjustment function. The control has to be un-locked to enable height adjustment.

Item no: 30-90570

Corner Bracket Adjustable 90° - 160°

If the walls exceed 90°, this bracket can be installed. It allows the FlexiPlus Countertop frame to be adjusted between 90° and 160°.

Specifications

Item number

30-90060 to 30-90100

Height adjustment

30 cm (65-95 cm)

Operation

Control switch

Max. user weight

60 – 240cm = 100 kg evenly distributed
245 – 300cm = 150 kg evenly distributed

Corner solutions: 150 kg, evenly distributed

Max load includes weight of tabletop and other installations.

Mounting

Wall-mounted

Dimensions

Frame height: 65 cm
Support arms height: 5 cm
Worktop length: 60-300 cm
For worktop depth: Standard: 58-62 cm. Also available for 38-72 cm (Accessory).

Please indicate length of worktop when ordering.

Legs and support arms

Number of legs and support arms depends on the size of worktop.

Power source

Hard-wired

Power supply

220-230V~ / 50-60Hz, 5.0A

Lifting speed

≈ 36mm/s (1.5in/s)

Intermittence

1min use / 9min break

Safety

Sicuro anti-collision feature

Ropox connect app

Incl. adapter for Ropox connect APP.

Materials

Welded steel tubes St. 37 Aluminium alloy 606045-T6 Stainless steel spindle and various plastic components

Surface treatment

Powder coated

Included

Various adjustment brackets, spacers for walls, cable bearer etc. are included.

CE certified

Line drawing
