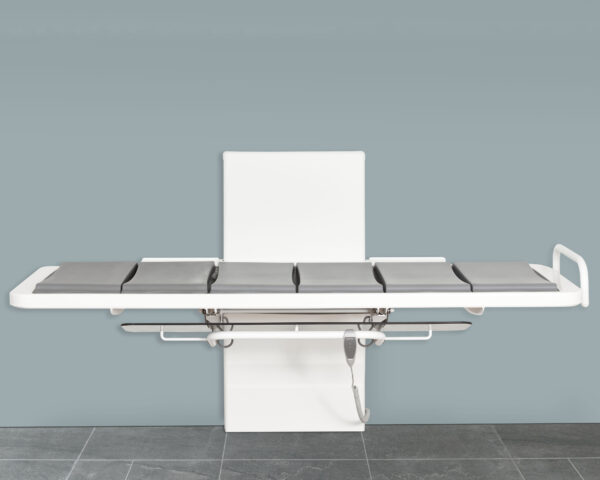

Changing and Shower bed with back support – length 146 cm

Item no. 40-25073
  • Features
  • Installation & maintenance
  • Drawings
  • Cases
  • Data

Features

Length: 146 cm – 4 slats.
Wall mounted and tiltable ith back support
Electrical height adjustment 30-100 cm.
Comes with detachable and reversible slats, shelves and flexible plumbing kit.
Notice: Lying area is 18 cm shorter than the length of the bed.

Data

Technical data

Manufactured in accordance with the following standard: DS/ISO 17966-2016

Materials: Pur slats. Vacuum formed plastic. Aluminium. Coated steel. Stainless steel.

According to DS/ISO 17966:2016 – max. user weight Shower/changing bed 220 kg

Functional dimensions:
Wall-mounted: height adjustment from 300 to 1000 mm. According to DS/ISO 17966:2016 – max. user weight Shower/changing bed 220 kg.

The Shower/Changing bed is not recommended for installation in aggressive environments (for example chlorine environments situated close to swimming pools).

The user-friendliness, the design and the welfare technology results in security and satisfaction for both user and helper.

The shower/changing bench is available in two versions: As a foldable nursing bench, which can be adjusted 70 cm in height, and as a movable bench, which can be adjusted 40 cm in height. It is quick and simple to adjust the height of the bed to the optimum position so, for example, wheelchair users easily can be moved onto the shower/changing bed.

The shower/changing bed has a smooth and cleaning-friendly design. Furthermore, the wall-mounted model can be folded to an upright position when not in use to save space in the bathroom.
