Description

A lift system that makes wall cupboards upboards height adjustable

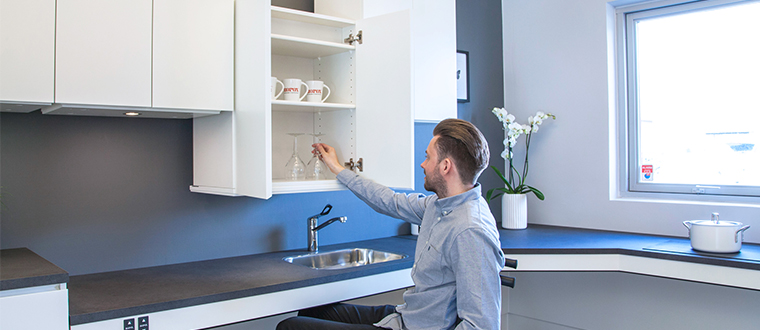

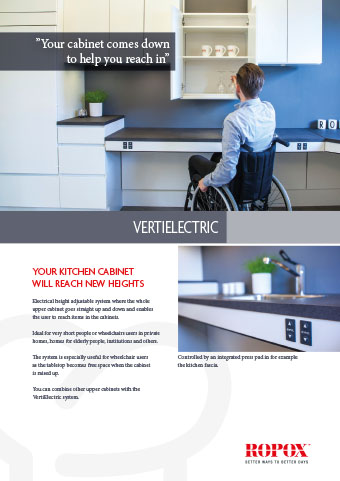

VertiElectric is a lift system with electrical height adjustment for kitchen upper wall cabinets. You can mount the system on all standard size wall cabinets and get height adjustable cupboards that can be set to a height where seated users and users with limited mobility can reach even the top shelves in the cupboard.

As the lift system can be applied to all regular standard size kitchen wall cabinets, you can use it for new kitchens as well as when you retrofit an existing kitchen.

The system consists of a frame with a lifting unit, and when the cupboard is mounted, you get the flexibility that enables elderly and disabled people to become more self-reliant in the kitchen.



When kitchens need to be flexible

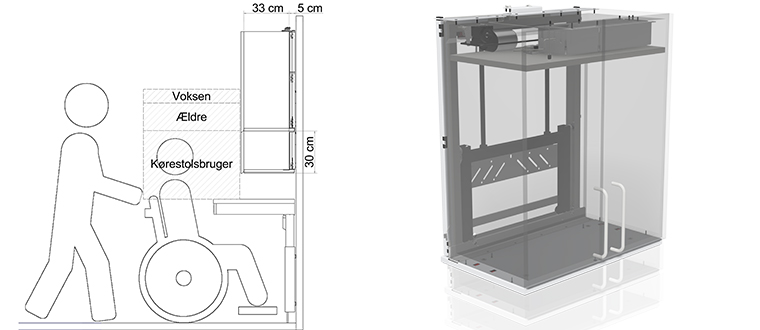

With VertiElectric the kitchen becomes flexible. The lift system provides the cabinets with a height adjustment range of 30 cm. That means that users with limited mobility can be more independent – and independence adds to the quality of life.

Even when the cabinet is set to its lowest position you will still have available room on the worktop for kitchen utensils. That is an advantage for wheelchair users as they can use the kitchen without being limited by the flexible cupboards.

There may be a need to create flexible kitchens in both private homes and sheltered accommodations, but also special schools and nursing homes use the lift system to give people the option to become as self-reliant as possible.



A lift system that fits standard size wall cupboards

All standard size regular kitchen wall cabinets can be mounted on the VertiElectric lift system which is only 5 cm deep. After the cabinet is installed, the system is not visible, and the kitchen will look like a typical kitchen. No one can see that intelligent welfare technology is hidden behind the kitchen exterior.

You can get the system frame in two different types. One fits cabinets 40-120 cm wide and the other fits cabinets 130-180 cm wide. In the latter, two frames systems are connected into one, and that way you can mount several cupboards onto the same system.



Height adjustable upper wall cabinets that are safe in usage

The height of the upper cabinets is adjusted electrically with a small control switch on the front fascia of the kitchen table or via a remote control. To minimize the risk of crushing injuries, we recommend that you mount a safety stop plate on the bottom of the cupboard. The safety stop ensures that the cupboard stops if anything gets squeezed when it is lowered. This means you can be confident that no one can get hurt when the height is adjusted.

The wall cupboards can sometimes take up some of the light. To mitigate this, you can install LED spots in the bottom safety stop plate. That will provide a solution that is safe and where the worktop is well lit.

It is paramount that a solution like the VertiElectric complies to the requirements of assistive devices. That is the reason the lift system is certified according to DS/EN 12182:2012 which is the standard for assistive aids for people with mobility disabilities. That is your guarantee that the system is both reliable, durable and in good quality.

VertiElectric is an optimum solution in kitchens for people with limited functional capacity. The lift system makes it possible to make an ordinary kitchen flexible enough to be accessible for all kinds of users.

Description

Item no.: 30-40604 to 30-40612

VertiElectric, for wall cupboards
Electric height adjustable system for wall cupboards
Height adjustment 30 cm
For cupboards heights 70-90 cm
For cupboards width 40-120 cm - use one frame
Ii is possible to mount several cupboards on one system

VertiElectric system

Item no.: 30-40613 to 30-40618

VertiElectric, for wall cupboards
Electric height adjustable system for wall cupboards
Height adjustment 30 cm
For cupboards heights 70-90 cm
For cupboards width 130-180 cm - use two frames
Ii is possible to mount several cupboards on one system

Accessories

Item no.: 30-41604 to 3041612

Safetystop plate, 1 plate
We always recommend to install safety stops on electric frames to reduces risk of trapping
Wall cupboards with depth 33 cm
Cupboard width 40-120 cm
Dimensions on saftystop plate: Depth 37 cm and height 3 cm
Standard colour white - RAL 9010

Safetystop 1 plate

Item no.: 30-41613 to 30-41618

Safetystop plate, 2 plates
We always recommend to install safety stops on electric frames to reduces risk of trapping
Wall cupboards with depth 33 cm
Cupboard width 130-180 cm
Dimensions on saftystop plate: Depth 37 cm and height 3 cm
Standard colour white - RAL 9010

Safetystop 2 plates

Item no.: 30-42604 to 30-42606

Safetystop plate, 1 LED spot
Cupboard width 40-60 cm
For better working conditions light can be mounted in the safetystop plate (assembled by Ropox)
12V 10W inkl. transformer
With a distance of 60 cm to illuminated surface, there is a brightness of 16 LUX
Standard colour white - RAL 9010

1 spot

Item no.: 30-42607 to 30-42612

Safetystop plate, 2 LED spots
Cupboard width 70-120 cm
For better working conditions light can be mounted in the safetystop plate (assembled by Ropox)
12V 10W inkl. transformer
With a distance of 60 cm to illuminated surface, there is a brightness of 16 LUX
Standard colour white - RAL 9010

2 spots

Item no.: 30-42613

Safetystop plate, 3 LED spots
Cupboard width 130 cm
For better working conditions light can be mounted in the safetystop plate (assembled by Ropox)
12V 10W inkl. transformer
With a distance of 60 cm to illuminated surface, there is a brightness of 16 LUX
Standard colour white - RAL 9010

3 spots

Item no.: 30-42614 to 30-42618

Safetystop plate, 4 LED spots
Cupboard width 140-180 cm
For better working conditions light can be mounted in the safetystop plate (assembled by Ropox)
12V 10W inkl. transformer
With a distance of 60 cm to illuminated surface, there is a brightness of 16 LUX
Standard colour white - RAL 9010

4 spots

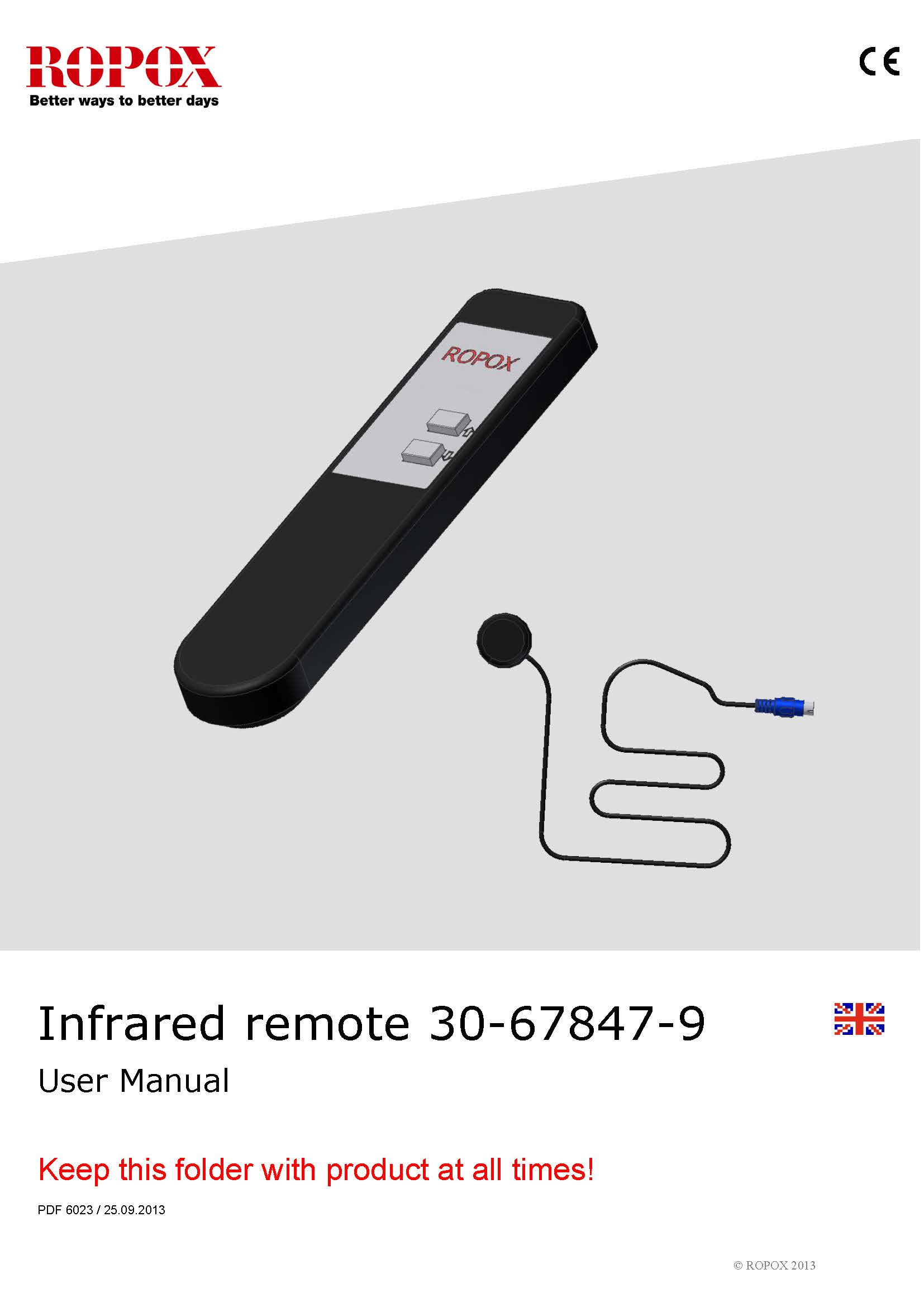

Item no.: 30-67847

Infra red control
1 channel
Range 150-200 cm

Infrared control 1 channel

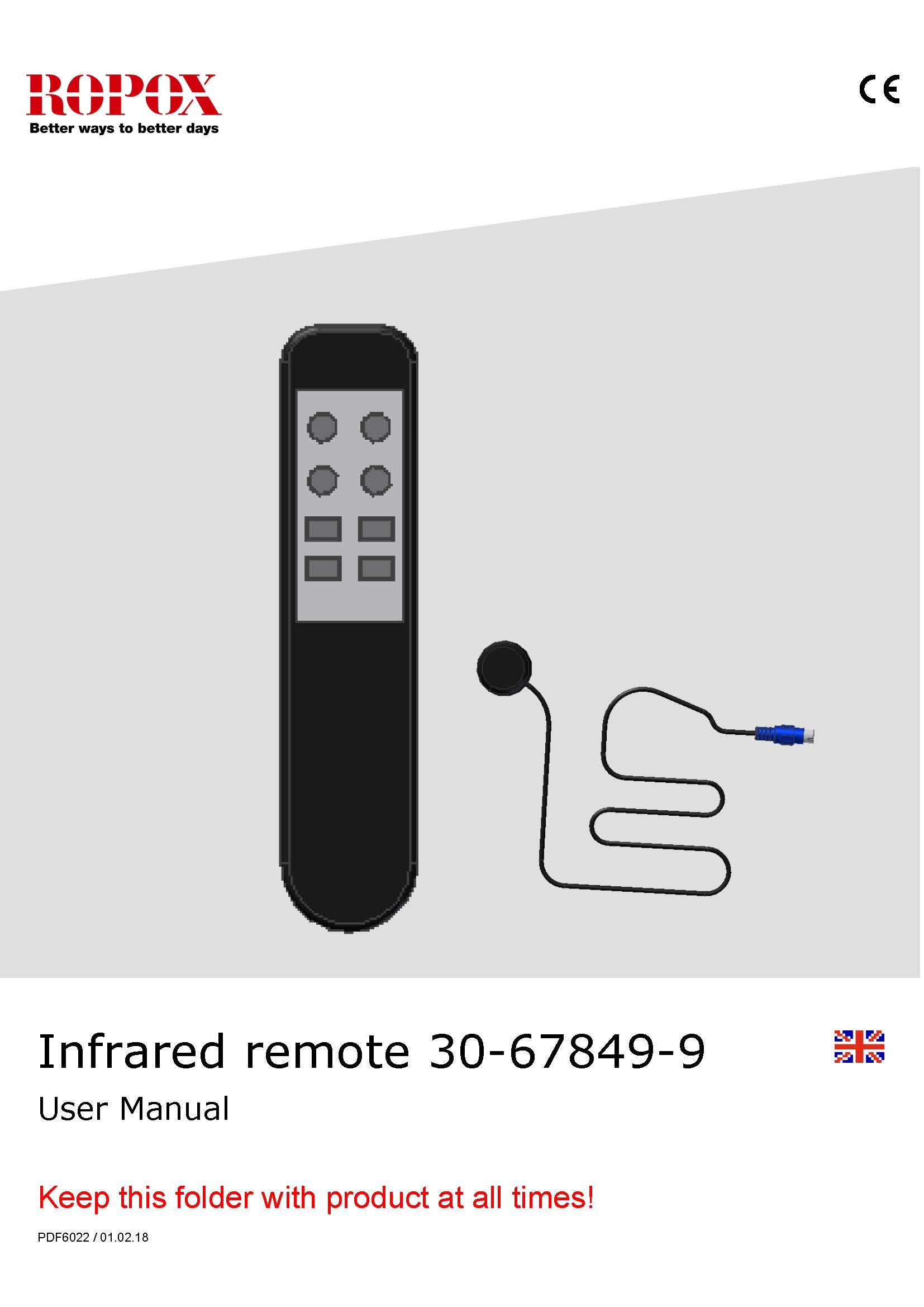

Item no.: 30-67849

Infra red control
2 channel
Range 150-200 cm

Infrared control 2 channels

Item no.: 30-67841

Large press pad
For a larger press pad this may be purchased
Size 14 x 7 cm

Large press pad

Item no.: 30-69002

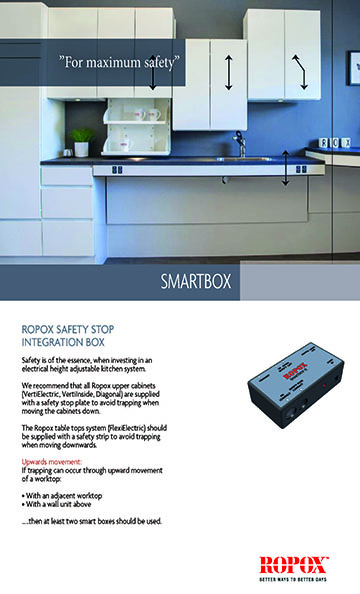

Smartbox
For coupling of multiple systems to reduce clamping hazard

Smartbox

Item no.: 30-67870

Extension cable
For safety strip and for safety stop
Length 250 cm

Extension cable

Item no.: 30-67871

Extension cable
Spiral extension cable for safety strip and safety stop
Length 25-150 cm

Spiral extension cable

Item no.: 30-40660

Spiral extension cable
For standard control switch and large press pad
Length 350 cm + spiral. 7 pins DIN plug

Extension cable

Video



Ropox VertiElectric video

Get a glimpse of how Ropox VertiElectric solution works in a kitchen.

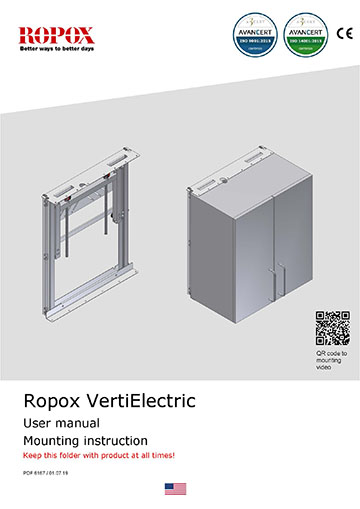

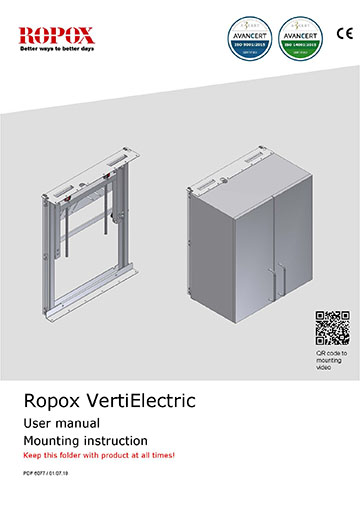

VertiElectric Montage video – Ropox  (English)



Smartbox 2 – Montage video – Ropox (English)



VertiElectric Montage video – Ropox (German)



Smartbox 2 Montage video – Ropox (German)



Technical data



Manufactured in accordance with the following standard: DS / EN12182-2012

Max. load: 80/120 kg evenly distributed
Box Height: 70-90 cm
Box Width: 40-180 cm
Depth of frame: 50 cm
